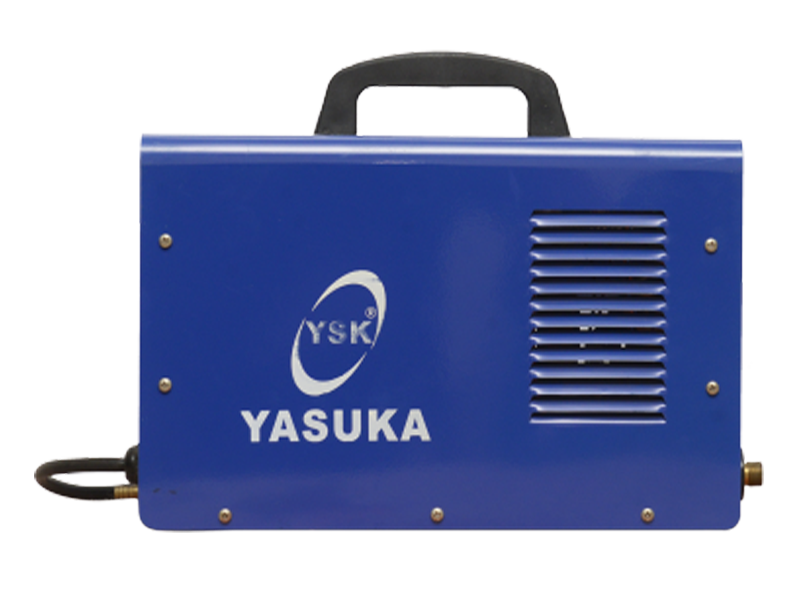

PLASMA CUTTER CUT-40
- CALL -
DETAIL PRODUCT
SPECIFICATIONS
| Specifications |
| Power Voltage (V) | Single Phase 220V + 15% |
| Rated Input Power (KVA) | 5 |
| No-load voltage (V) | 230 |
| Rated Input Current (A) | 22 |
| Current Range (A) | 20 - 40 |
| Rated Output Voltage (V) | 96 |
| Duty Cycle | 60% |
| Efficiency (%) | 85 |
| Power factor | 0.93 |
| Pilot Arc Model | HF oscillating |
| Burner Inter Diameter (mm) | 1.0 |
| Housing Protection Grade | IP21 |
| Arcing Way | Untouched |
| Pressure Of Air Compressor (Kg) | 4 - 5 |
| Thickness (mm) | 1 - 14 |
| Weight (Kg) | 9 |
| Dimensions (mm) | 371 x 153 x 232 |
